Audio ToolBox AVBx7/SB+r

AuviTran Audio ToolBox in StageBox version 19″x2U with 7 card slots + internal audio Matrix + Integrated redundant PSU

SKU: AUV-AVBx7/SB+r Category: Tags: , ,
Brands:AuviTran

Description

Audio ToolBox in StageBox version 19″x2U with 7 card slots + internal audio Matrix + Integrated redundant PSU AVBx7/SB+r Audio ToolBox

AuviTran has designed the AVBx7 to address both live and installation purposes, when you need to combine different networking technologies to make them work together. Smoothly, with no latency. Simply insert the cards of your choice into the ToolBox backbone to allow compatibility between networks using different protocols. The channels distribution over the cards will be operated automatically. Et voilà!

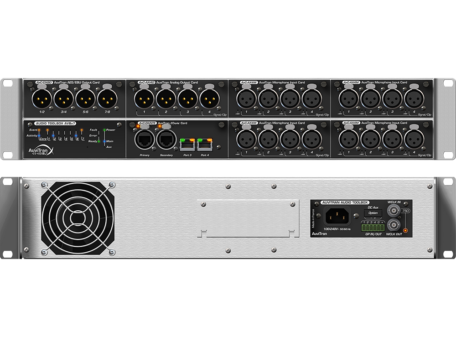

AuviTran Audio ToolBox AVBx7 2U 19’’
Size 483 x 253x 88 mm – Standard 19’’ rack, 2U Height
Slots 7 slots up to 2×64 channels for integration of
any AxC interface card
Audio Matrix Integrated full matrix of 448×448 channels to exchange input/output between any of 7 slots
Main Power Supply 100-240 VAC – Maximum 110W
Aux Power Supply 100-240 VAC – Maximum 110W
Storage Temp/Humidity -5°C to 70°C / 0% to 95% (no condensing)
Operating Temp/Humidity 0 °C to 40°C / 5% to 90% (non condensing)
Display Panel Power Main/Aux – Fault/Error/Ready – Networks and interface card Events/Activities
Connections 2x IEC power inlet for integrated Main and Aux
AC power supply
2x BNC for Word Clock In and Out
1x Euroblock 6 poles for GPIO
7x Slots to insert up to 7x AxC cards
GPIO 4 configurable GPIO, Can be set as 4x VCA (ADC 8 bits 0-12V level input) for fader control or level trigger actions
AVS_Monitor Remote control and monitoring of Audio ToolBox and inserted cards over Dante, IP and EtherSound network



AVBx7/SB+r Audio ToolBox Applications

  • Convert AVB to Dante™
  • Convert MADI to Dante™
  • Matrix Digital Audio

Manufacturer’s Website

Find your sales reps

Specifications

General Specifications

Size 483 x 253x 88 mm – Standard rack 19’’, 2U Height
Slots 7 slots up to 2×64 channels for integration of
any AxC interface card
Audio Matrix Integrated full matrix of 448×448 channels to exchange input/output between any of 7 slots
Main Power Supply 100-240 VAC – Maximum 110W
Aux Power Supply 100-240 VAC – Maximum 110W
Storage Temp/Humidity -5°C to 70°C / 0% to 95% (no condensing)
Operating Temp/Humidity 0 °C to 40°C / 5% to 90% (non condensing)
Display Panel Power Main/Aux – Fault/Error/Ready – Networks and interface card Events/Activities
Connections 2x IEC power inlet for integrated Main and Aux
AC power supply
2x BNC for Word Clock In and Out
1x Euroblock 6 poles for GPIO
7x Slots to insert up to 7x AxC cards
GPIO 4 configurable GPIO, Can be set as 4x VCA (ADC 8 bits 0-12V level input) for fader control or level trigger actions
AVS_Monitor Remote control and monitoring of Audio ToolBox and inserted cards over Dante, IP and EtherSound network
