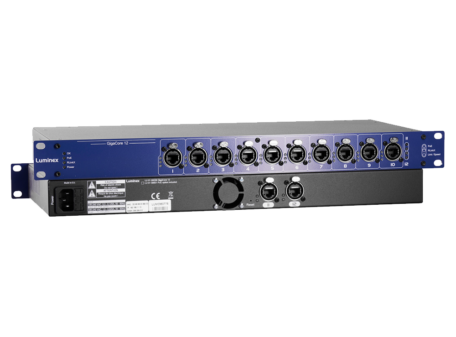

GigaCore 12

The GigaCore 12 is a managed Gigabit Ethernet switch designed to setup professional lighting and AV networks, but in a truly user friendly way. The unit offers 12 Gigabit ports on shielded Neutrik Ethercon ports, making the product a hard environment friendly device. All configurations are done through the industry oriented web interface.

Luminex GigaCore switches a pre-configured for many AV protocols including Dante, AVB Milan, AES67, Ethersound, Q-LAN, Ravenna, sACN, ArtNet etc.

SKU: LU0100036 Categories: ,
Brands:Luminex

Description

The GigaCore 12 is a managed Gigabit Ethernet switch designed to setup professional lighting and AV networks, but in a truly user friendly way. The unit offers 12 Gigabit ports on shielded Neutrik Ethercon ports, making the product a hard environment friendly device. All configurations are done through the industry oriented web interface.

Luminex GigaCore switches a pre-configured for many AV protocols including Dante, AVB Milan, AES67, Ethersound, Q-LAN, Ravenna, sACN, ArtNet etc.

Key Features

  • Most suitable applications: Touring and live events
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC address table:
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 32Gbps
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

Connectivity

  • Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
  • Fiber connectivity: None
  • Ethernet port speed: 1Gbps
  • Serial: None

Power

  • Power connectivity: 1 x IEC inlet with fuse holder
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 30W (maximum 180W with PoE Supply Unit)
  • Fuse: 3.15A 250V Slow Blow
  • Backup power input: None
  • Backup PoE power input: None
  • PoE supply: Optional on front ports only (up to 160W)

Protocols

  • Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet

Configuration

  • Display and jog: None
  • Configuration: Through the built-in web server
  • Status LEDs:
    • Global status LEDs: Device, power, PoE power, RLinkX
    • Port status LEDs: PoE, RLinkX, link/activity and port speed
  • Colored RGB LEDs: No

Physical

  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 482 x 204,3 x 44 mm (19″ x 8.04″ x 1.73″)
  • Weight: 2,8 kg
  • Packaging: 545 x 335 x 80 mm (21,5″ x 13,2″ x 3,15″)
  • Environment:
    • Operating temperature: 0 to +50 °C
    • Storage temperature: -10 to +70 °C
    • Humidity (non condensing): 5 to 95% RH
  • Certificates/Approvals: CE, RoHS
  • Standards: EN 60950-1, EN 55022, EN 55024
