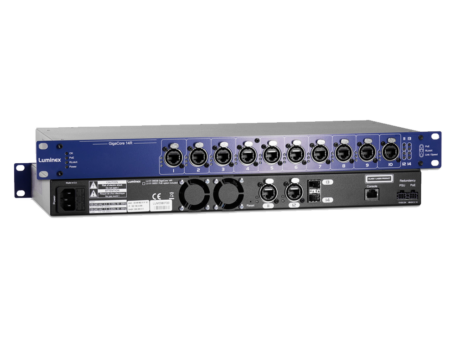

GigaCore 14R PoE

The GigaCore 14R is a Gigabit Ethernet switch designed to cope with the most demanding lighting and AV installations. Managed through a web interface, the device offers a user friendly experience with an industry specific oriented interface. Fitted with two SFP cages, the switch can support any compliant fiber transceiver, breaking the limit of copper cable run. Two power backup ports at the rear of the unit makes the switch a reliable Gigabit core for your network.

Luminex GigaCore switches a pre-configured for many AV protocols including Dante, AVB Milan, AES67, Ethersound, Q-LAN, Ravenna, sACN, ArtNet etc.

SKU: LU0100038-PoE Categories: ,
Brands:Luminex

The GigaCore 14R is a Gigabit Ethernet switch designed to cope with the most demanding lighting and AV installations. Managed through a web interface, the device offers a user friendly experience with an industry specific oriented interface. Fitted with two SFP cages, the switch can support any compliant fiber transceiver, breaking the limit of copper cable run. Two power backup ports at the rear of the unit makes the switch a reliable Gigabit core for your network. The GigaCore 14R comes with a bunch of industry oriented feature, providing a user friendly solution and lowering down setup time.

Luminex GigaCore switches a pre-configured for many AV protocols including Dante, AVB Milan, AES67, Ethersound, Q-LAN, Ravenna, sACN, ArtNet etc.

Key Features

  • Most suitable applications: Touring and live events
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC address table:
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 32Gbps
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

Connectivity

  • Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
  • Fiber connectivity: 2 x SFP cages
  • Ethernet port speed: 1Gbps
  • Serial: 1 x serial RJ45 console port

Power

  • Power connectivity:
    • 1 x IEC inlet with fuse holder
    • 1 x redundant power input on Molex Micro-Fit 6 pin connector
    • 1 x redundant PoE input on Molex Micro-Fit 6 pin connector
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 30W (maximum 180W with PoE Supply Unit)
  • Fuse: 3.15A 250V Slow Blow
  • Backup power input: 15VDC / 2A
  • Backup PoE power input: 48VDC / 3.4A
  • PoE supply: Optional on front ports only (up to 160W)

Protocols

  • Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet

Configuration

  • Display and jog: None
  • Configuration: Through the built-in web server
  • Status LEDs:
    • Global status LEDs: Device, power, PoE power, RLinkX
    • Port status LEDs: PoE, RLinkX, link/activity and port speed
  • Colored RGB LEDs: No

Physical

  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 482 x 204,3 x 44 mm (19″ x 8.04″ x 1.73″)
  • Weight: 2,9 kg
  • Packaging: 545 x 335 x 80 mm (21,5″ x 13,2″ x 3,15″)
  • Environment:
    • Operating temperature: 0 to +50 °C
    • Storage temperature: -10 to +70 °C
    • Humidity (non condensing): 5 to 95% RH
  • Certificates/Approvals: CE, RoHS
  • Standards: EN 60950-1, EN 55022, EN 55024

Applications

  • AVB Network Switch
  • Dante Network Switch
  • AES67 Network Switch
  • AV Network Switch
  • Tour Sound & Lighting
