Description

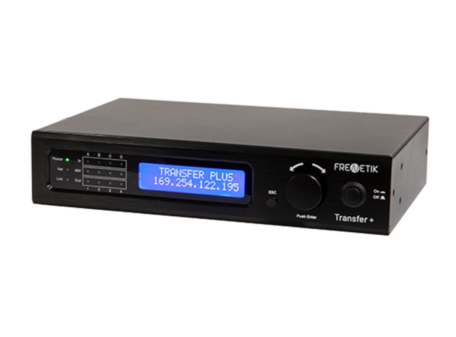

4 x 4 Dante ™ converterAllows the conversion and distribution of 4 analog sources on the Dante ™ network and 4 Dante ™ sources in analog line level • Microphone (with detachable phantom power) / line inputs • Detachable euroblock input / output connectors • LCD configuration screen • Mains power supply included • 3 year warranty
- Ref.: CV441D
- Type: Dante™ interface 4×4
- Input Connectors: 4 x euroblock
- Output Connectors: 4 x euroblock
- Input impedance: > 11 kohms
- Maximum input level: + 12dBu
- Output impedance: < 100 ohms
- Maximum output level: + 12 dBu
- Frequency reponses: 20 Hz – 20 kHz (+\- 0,2dB)
- THD: < 0.012% (@ 1kHz +12 dBu)
- Power supply: 100 – 240 V, 50/60 Hz
- Consumption: 7,5 W
- Dimensions (HxWxD): 45 x 215 x 145 mm
- Weight: 1.38 kg (excluding accessories)
