Description
Allows the conversion and distribution of 4 analog sources on Dante™ network • detachable euroblock input/output connectors • PoE (provided) or 12V power supply (not provided) • 3 year warranty

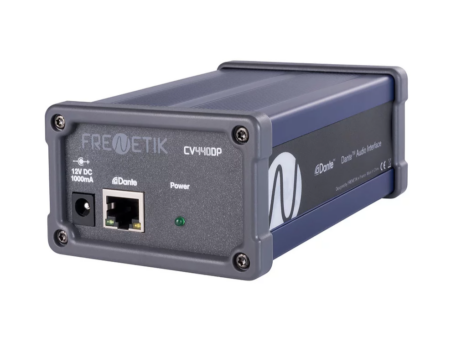

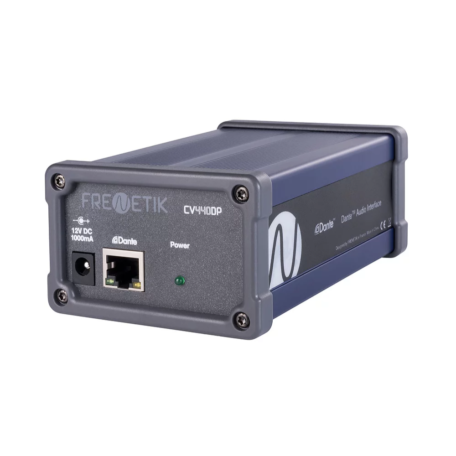

- Ref.: CV440DP
- Type: Dante™ interface 4×4
- Input Connectors: 4 x euroblock
- Output Connectors: 4 x euroblock
- Audio network connector: RJ45
- Input impedance: > 1.8 kohms
- Maximum input level: +8 dBu
- Output impedance: 200 ohms
- Maximum output level: + 20 dBu
- Frequency response: 20 Hz – 20 kHz (+/- 1 dB)
- THD+N: < 0.02%
- Power supply: PoE 802.3 af (provided) or 12 V external (not provided)
- Consumption: 10 W max
- Dimensions: 52 x 81 x 121 mm
- Weight: 357 g (excluding accessories)accessoires)
