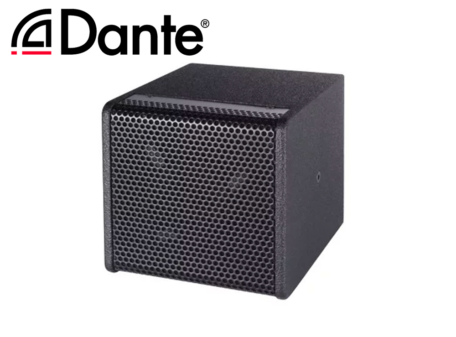

SPK 5 PoE+ Dante Loudspeaker

• 5″ coaxial, Dante™ PoE+ Compact 2-way powered loudspeaker
• Wooden enclosure
• Dante™ and PoE+ class D amplifier with DSP
• 100° x 100° Dispersion
• Remote control of volume, bass, treble via FRENETIK Adjust software
• No logo on front panel
• 3 year warranty

Categories: , , ,
Brands:Frenetik

Description

5″ coaxial speaker, Dante™ PoE+Compact 2-way coaxial wide-opening amplified processor speaker, Dante™ PoE+ • 25W class D amplifier board with integrated latest generation DSP • Wide and homogeneous directivity 100° x 100° • Wooden cabinet • Euroblock connector for use with external amplification • Remote control of volume, bass, treble via FRENETIK Adjust software • Board temperature monitoring • No logo on front panel • 3 year warranty

  • Ref.: SPCX50DP
  • Type: Amplified 2-way coaxial speaker, Dante™ PoE+
  • Power (passive mode): 60 W (8 ohms)
  • Amplification: 25 W (classe D)
  • Dante™ Receiver: 1 (16 / 24 / 32 bit – 44.1 à 96 kHz)
  • Transducers: 1 x 5″ woofer / 1 x 1″ tweeter
  • Peak SPL capacity (1 m): 112 dB
  • Bandwidth (-10 dB): 95 Hz – 20 kHz
  • Directivity (H x V): 100° x 100°
  • Input connectors: 1 x RJ45 (Dante™ active mode) + 1 Euroblock (passive mode)
  • Insert: 4 x M6
  • Power supply: PoE+ (IEEE 802.3 at)
  • Dimensions: 165 x 165 x 193 mm
  • Weight: 2.50 kg

Data Sheet

User Manual
