Description
Overview

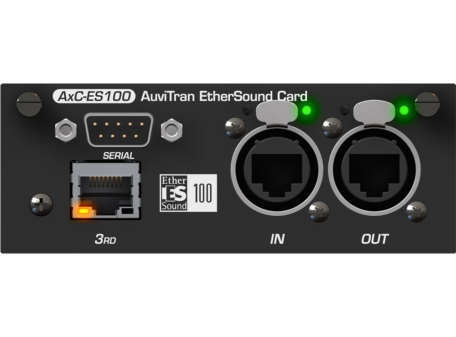

Just as every AxC card within the Audio ToolBox range, the AxC-ES100 can equally be used in AVBx3 or AVBx7 platforms.
Using one slot of either ToolBox, the AxC-ES100 allows you to bring both EtherSound and ASIO interfaces into your network configuration.
Key Features
- Using only one Audio ToolBox slot, the AxC-ES100 can be used either with AVBx3 or AVBx7 platforms
- 64 inputs and 64 outputs
- One RS232 port compatible with Yamaha HA remote
- ASIO through the third port (up to 64 channels in and 64 channels out)
- Remote management with AVS-Monitor software
- Two EtherCon connectors allowing 64 channels extraction and 64 channels insertion to ES100 network
Combined with other AuviTran Audio ToolBox cards, the AxC-ES100 card opens exciting possibilities to the professional audio systems:
- Coupled with AxC-AX4M mic card and AxC-AX4O analog output card, AxC-ES100 tunnelling system allows setting and monitoring all ToolBox parameters, such as microphone gains, using AVS-Monitor interface or a Yamaha mixer HA remote control.
- Suitable for all public address applications, live sound and adapted to Yamaha consoles
Applications
Fixed installations (installation mode)
- Public Address, paging systems, theme parks and resorts
- Broadcast rack in central room
- Theatres, bars, pubs discos
- Exhibitions and conference centres
Live applications (stage-box mode)
- Stadiums, concert halls
- Live concerts and recording
- Live broadcast studios and OB Vans
- Recording studios…
